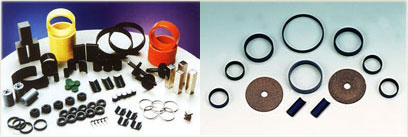

Bonded NdFeB Magnets |
|
| Model: |
Bonded NdFeB Magnets |
| Name: |
|
| Description: |
|
| Packing: |
|
| Other: |
|
Grade
|
Max,Energy Product |
Remanence |
Coercivity |
Intrinsic Coercivity |
Density |
Relative Recoil Premeability |
Temperature Coefficient of Remanence |
Max Operating Temperature |
| (BH)max |
Br |
Hcb |
Hcj |
D |
μr |
αβr |
TW |
| KJ/m3 |
MGOe |
T(Gs) |
KA/m |
KOe |
KA/m |
KOe |
g/cm3 |
μr |
%/°C |
°C |
| BNI-3 |
8-24 |
1.0-3.0 |
0.20-0.40 |
120-240 |
1.5-3.0 |
480-640 |
6.0-8.0 |
3.9-4.4 |
1.2 |
-0.15 |
100 |
| BNI-4 |
28-36 |
3.5-4.5 |
0.40-0.46 |
250-335 |
3.1-4.2 |
575-735 |
7.2-9.2 |
4.2-4.9 |
1.2 |
-0.13 |
110 |
| BNI-5 |
37-44 |
4.6-5.5 |
0.45-0.51 |
280-360 |
3.5-4.5 |
640-800 |
8-10 |
4.5-5.0 |
1.2 |
-0.13 |
120 |
| BNI-6 |
44-52 |
5.5-6.5 |
0.51-0.56 |
295-375 |
3.7-4.7 |
640-800 |
8-10 |
4.7-5.1 |
1.13 |
-0.11 |
120 |
| BNI-6II |
40-52 |
5.0-6.5 |
0.48-0.56 |
335-400 |
4.2-5.0 |
1035-1355 |
13-17 |
4.8-5.2 |
1.13 |
-0.15 |
130 |
| BNI-7 |
51-59 |
6.5-7.5 |
0.54-0.64 |
320-400 |
4.0-5.0 |
640-800 |
8-10 |
5.0-5.5 |
1.13 |
-0.11 |
120 |
| BNI-5SR |
36-44 |
4.5-5.5 |
0.45-0.50 |
300-360 |
3.8-4.5 |
875-1115 |
11-14 |
4.9-5.4 |
1.13 |
-0.13 |
150 |
|
Grade
|
Max,Energy Product |
Remanence |
Coercivity |
Intrinsic Coercivity |
Density |
Relative Recoil Premeability |
Temperature Coefficient of Remanence |
Max Operating Temperature |
| (BH)max |
Br |
Hcb |
Hcj |
D |
μr |
αβr |
TW |
| KJ/m3 |
MGOe |
T(Gs) |
KA/m |
KOe |
KA/m |
KOe |
g/cm3 |
μr |
%/°C |
°C |
| BNP-6 |
44-56 |
5.5-7.0 |
0.55-0.62 |
285-370 |
3.6-4.6 |
600-755 |
7.5-9.5 |
5.5-6.1 |
1.15 |
-0.13 |
100 |
| BNP-8L |
56-64 |
7.0-8.0 |
0.60-0.64 |
360-400 |
4.5-5.0 |
715-800 |
9-10 |
5.6-6.1 |
1.15 |
-0.13 |
100 |
| BNP-8 |
64-72 |
8.0-9.0 |
0.62-0.69 |
385-445 |
4.8-5.6 |
640-800 |
8-10 |
5.6-6.1 |
1.13 |
-0.13 |
120 |
| BNP-8SR |
64-72 |
8.0-9.0 |
0.62-0.66 |
410-465 |
5.2-5.8 |
880-1120 |
11-14 |
5.6-6.1 |
1.13 |
-0.13 |
150 |
| BNP-8H |
64-72 |
8.0-9.0 |
0.61-0.65 |
410-445 |
5.2-5.7 |
1190-1440 |
15-18 |
5.9-6.2 |
1.15 |
-0.07 |
125 |
| BNP-9 |
70-76 |
8.8-9.5 |
0.65-0.70 |
400-440 |
5.0-5.5 |
640-800 |
8-10 |
5.6-6.1 |
1.22 |
-0.12 |
120 |
| BNP-10 |
76-84 |
9.5-10.5 |
0.68-0.72 |
420-470 |
5.3-5.9 |
640-
800 |
8-10 |
5.6-6.1 |
1.22 |
-0.11 |
120 |
| BNP-11 |
80-88 |
10-11 |
0.70-0.74 |
445-480 |
5.6-6.0 |
680-800 |
8.5-10 |
5.6-6.1 |
1.22 |
-0.11 |
120 |
| BNP-11L |
78-84 |
9.8-10.5 |
0.70-0.74 |
400-440 |
5.0-5.5 |
520-640 |
6.5-8 |
5.6-6.1 |
1.26 |
-0.11 |
110 |
| BNP-12L |
84-92 |
10.5-11.5 |
0.74-0.80 |
420-455 |
5.3-5.7 |
520-600 |
6.5-7.5 |
5.6-6.1 |
1.26 |
-0.08 |
110 |
|
|
|
|
|
|
