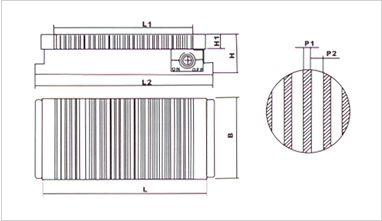

Magnetic-Chuck |
|
| Model: |
Magnetic-Chuck |
| Name: |
|
| Description: |
|
| Packing: |
|
| Other: |
|
| Model |
B |
L1 |
H |
P=P1+P2 |
|
package demision |
|
|
| (mm) |
(mm) |
(mm) |
(mm) |
N.(kg) |
M.(cm) |
W.(kg) |
| MCS1018 |
104 |
180 |
43 |
0.5+1.5 |
6.5 |
26*16*8 |
9.5 |
H=43-60,
L1=150-350
H=43-60,
L1=150-350
H=43-60,
L1=150-350
H=50-65,
L1=400-700
H=50-65,
L1=450-700 |
12kgf/cm 2 ,
|
| MCS1018 |
104 |
180 |
43 |
1+3 |
6.5 |
26*16*8 |
9.5 |
| MCS1018 |
104 |
180 |
43 |
2+4 |
6.5 |
26*16*8 |
9.5 |
| MCS1225 |
120 |
250 |
43 |
0.5+1.5 |
10.5 |
33*18*8 |
15 |
| MCS1225 |
120 |
250 |
43 |
1+3 |
10.5 |
33*18*8 |
15 |
| MCS1225 |
120 |
250 |
43 |
2+4 |
10.5 |
33*18*8 |
15 |
| MCS1235 |
120 |
350 |
50 |
0.5+1.5 |
16.5 |
43*18*9 |
20 |
| MCS1235 |
120 |
350 |
50 |
1+3 |
16.5 |
43*18*9 |
20 |
| MCS1235 |
120 |
350 |
50 |
2+4 |
16.5 |
43*18*9 |
20 |
| MCS1530 |
150 |
300 |
43 |
0.5+1.5 |
15.5 |
38*21*8 |
19 |
| MCS1530 |
150 |
300 |
43 |
1+3 |
15.5 |
38*21*8 |
19 |
| MCS1530 |
150 |
300 |
43 |
2+4 |
15.5 |
38*21*8 |
19 |
| MCS1535 |
150 |
350 |
43 |
0.5+1.5 |
18.5 |
43*21*8 |
22 |
| MCS1535 |
150 |
350 |
43 |
1+3 |
18.5 |
43*21*8 |
22 |
| MCS1535 |
150 |
350 |
43 |
2+4 |
18.5 |
43*21*8 |
22 |
| MCS2040 |
200 |
400 |
50 |
0.5+1.5 |
32 |
48*26*9 |
38 |
| MCS2040 |
200 |
400 |
50 |
1+3 |
32 |
48*26*9 |
38 |
| MCS2040 |
200 |
400 |
50 |
2+4 |
32 |
48*26*9 |
38 |
| MCS2050 |
200 |
500 |
50 |
0.5+1.5 |
40 |
58*26*9 |
47 |
| MCS2050 |
200 |
500 |
50 |
1+3 |
40 |
58*26*9 |
47 |
| MCS2050 |
200 |
500 |
50 |
2+4 |
40 |
58*26*9 |
47 |
| MCS2550 |
250 |
500 |
50 |
0.5+1.5 |
50 |
58*31*9 |
58 |
| MCS2550 |
250 |
500 |
50 |
1+3 |
50 |
58*31*9 |
58 |
| MCS2550 |
250 |
500 |
50 |
2+4 |
50 |
58*31*9 |
58 |
| MCS2565 |
250 |
650 |
50 |
0.5+1.5 |
65 |
73*31*9 |
73 |
| MCS2565 |
250 |
650 |
50 |
1+3 |
65 |
73*31*9 |
73 |
| MCS2565 |
250 |
650 |
50 |
2+4 |
65 |
73*31*9 |
73 |
| MCS3060 |
300 |
600 |
50 |
0.5+1.5 |
72 |
68*36*9 |
82 |
| MCS3060 |
300 |
600 |
50 |
1+3 |
72 |
68*36*9 |
82 |
| MCS3060 |
300 |
600 |
50 |
2+4 |
72 |
68*36*9 |
82 |
|
Suction : 8kgf/cm2 , 10kgf/ cm2 , 12kgf/ cm2 (Specific made as order)
The permanent-magnetic chuck is applied to holding workpiece of magnetic material to begroud on surface grinding machine
and universal tool grinder electrical process machine ect. And can also be used as line-drawing tools of benchwork for
scraping and grinding .
The permanent-magnetic chuck doesnĄ¯t need power supply and wil not cause any unexpected accident because of fallure of
power supply , therefore , it is being widely used.

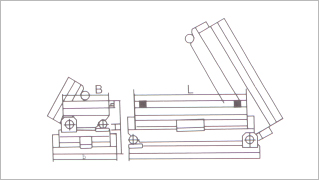

| Model |
B |
L1 |
H |
P=P1+P2 |
|
|
|
|
| (mm) |
(mm) |
(mm) |
(mm) |
N.Z(kg) |
M.(cm) |
W.(kg) |
| MCSI1018 |
104 |
180 |
85 |
0.5+1.5~2+4 |
10.2 |
15*25*13.5 |
12.5 |
0°~60° |
| MCSI1030 |
104 |
300 |
85 |
0.5+1.5~2+4 |
17 |
15*36*13.5 |
20 |
| MCSI1225 |
120 |
250 |
85 |
0.5+1.5~2+4 |
16.3 |
17*32*13.5 |
20 |
| MCSI1235 |
120 |
350 |
85 |
0.5+1.5~2+4 |
23 |
17*42*13.5 |
28 |
| MCSI1530 |
150 |
300 |
93 |
0.5+1.5~2+4 |
29 |
20*36*13.5 |
35 |
| MCSI1540 |
150 |
400 |
93 |
0.5+1.5~2+4 |
38 |
20*46*13.5 |
44 |
| MCSI2035 |
200 |
350 |
106 |
0.5+1.5~2+4 |
49 |
25*42*15 |
56 |
0°~50° |
| MCSI2050 |
200 |
500 |
106 |
0.5+1.5~2+4 |
70 |
25*56*15 |
78 |
| Model |
B |
L1 |
H |
P=P1+P2 |
|
|
|
|
| (mm) |
(mm) |
(mm) |
(mm) |
N.Z(kg) |
M.(cm) |
W.(kg) |
| MCSI1018 |
104 |
180 |
85 |
0.5+1.5~2+4 |
10.2 |
15*25*13.5 |
12.5 |
0°~60° |
| MCSI1030 |
104 |
300 |
85 |
0.5+1.5~2+4 |
17 |
15*36*13.5 |
20 |
| MCSI1225 |
120 |
250 |
85 |
0.5+1.5~2+4 |
16.3 |
17*32*13.5 |
20 |
| MCSI1235 |
120 |
350 |
85 |
0.5+1.5~2+4 |
23 |
17*42*13.5 |
28 |
| MCSI1530 |
150 |
300 |
93 |
0.5+1.5~2+4 |
29 |
20*36*13.5 |
35 |
| MCSI1540 |
150 |
400 |
93 |
0.5+1.5~2+4 |
38 |
20*46*13.5 |
44 |
| MCSI2035 |
200 |
350 |
106 |
0.5+1.5~2+4 |
49 |
25*42*15 |
56 |
0°~50° |
| MCSI2050 |
200 |
500 |
106 |
0.5+1.5~2+4 |
70 |
25*56*15 |
78 |

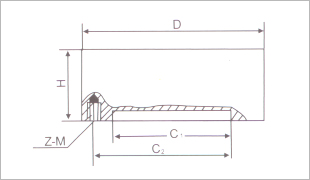

| Model |
D |
H |
C1 |
Z |
C2 |
M |
|
|
|
| mm |
mm |
mm |
|
mm |
|
kg |
cm |
kg |
| MCR10 |
100 |
50 |
60 |
4 |
88 |
M6 |
2 |
12*12*7 |
3 |
| MCR16 |
160 |
60 |
100 |
4 |
140 |
M8 |
8 |
18*18*8 |
10 |
| MCR20 |
200 |
67 |
160 |
3 |
186 |
M10 |
12 |
26*26*12 |
16 |
| MCR25 |
250 |
68 |
200 |
3 |
228 |
M12 |
20 |
33*33*12 |
28 |
| MCR32 |
320 |
94 |
265 |
3 |
190 |
M12 |
49 |
38*38*18 |
58 |
| MCR40 |
400 |
95 |
378 |
6 |
300 |
M12 |
76 |
48*48*18 |
86 |
|
|
|
|
|
