Permanent Magnetic Lifter ( Magnet Lifter ) |
|
| Model: |
Permanent Magnetic Lifter ( Magnet Lifter ) |
| Name: |
|
| Description: |
Principles of Magnetic Lifter ( Magnet Lifter )
Model UNI Permanent Magnet Lifter has strong magnetic path producde by Nd-Fe-B magnetic materials. On and Off of the magnetic path is controlled by turning the manual handle UNI permanent magnetic lifters have magnet as power, and its lifting power will never weaken.
Application: In loading and unloading, the lifter can hoist iron/steel blocks,cylinders and others onto magnetic materials for linkage of connection. It is very convenient for application in loading,unloading,and moving.UNI permanentmagnetic lifters are the most ideal lifting facility for factories,docks,warehouses and transportation.
Features:Lightly and ingeniously structured,easy for application,strong magnetic Attraction power and safe in handling.magnetic lifters are the most ideal lifting facility for factories,docks,warehouses and transportation.
|
| Packing: |
|
| Other: |
|

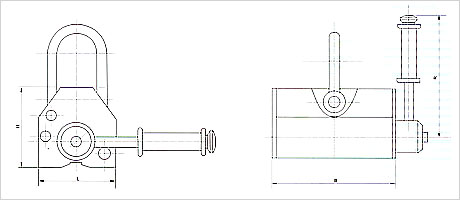

Model
|
Rated lifting strength(kgf) |
Cylindrical
lifting strength(kgf) |
Maxpull-off strength(kgf) |
W |
L |
H |
R |
Operation temperature(°C) |
Dead weight(kg) |
| UNI-300 |
300 |
150 |
1050 |
80 |
180 |
80 |
168 |
<80 |
9 |
| UNI-600 |
600 |
300 |
2100 |
107 |
198 |
103 |
198 |
<80 |
20 |
| UNI-1000 |
1000 |
500 |
3500 |
129 |
262 |
130 |
262 |
<80 |
40 |
| UNI-2000 |
2000 |
1000 |
7000 |
170 |
370 |
170 |
370 |
<80 |
85 |
| UNI-3000 |
3000 |
1500 |
10500 |
234 |
470 |
190 |
480 |
<80 |
180 |
| UNI-4000 |
4000 |
2000 |
14000 |
255 |
615 |
204 |
600 |
<80 |
280 |
| UNI-6000 |
6000 |
3000 |
21000 |
266 |
650 |
232 |
600 |
<80 |
420 |
|
|
|
|
|
|
